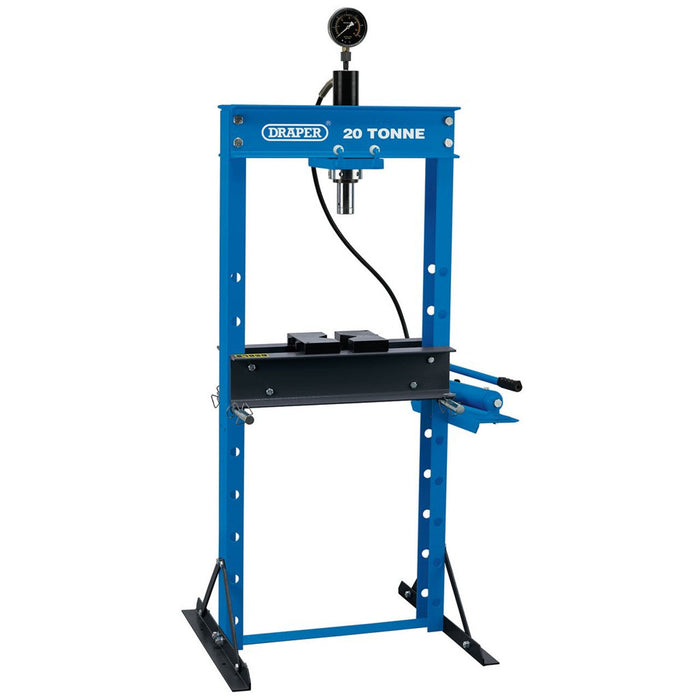

Robust hydraulic 20 tonne floor press with sliding ram. There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection .Fitted with a safety valve to protect the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.
NOTE: BULKY ITEMS INCUR ADDITIONAL FREIGHT CHARGES
Discover the Draper Hydraulic Floor Press 20 Tonne 70540 at Draper Tools Australia – your trusted source for quality tools and equipment!
Sliding ram
Ram height to table between 28-998mm
Glycerine filled gauge for increased accuracy and long service life
Anti-kink coil fitted to each end of the flexible hose for increased protection
| Capacity | 20 tonne |
| Gauge range | 0-28 tonne |
| Gauge diameter | 105mm |
| Ram stroke | 185mm |
| Ram diameter | 40mm |
| Ram height to table | 28-998mm |
| Working table width | 550mm |
| Overall height | 1785mm |
| Weight | 113.5kg |
